Description |
Qty |
Description |
|||||
|
1 |
3/8 " 4' x 8' plywood cut into |
1 |
water heater thermostat |
||||
|
â |
1 |
switch box |
|||||
|
Qty |
Dimenisons |
Description |
1 |
spst switch |
|||
|
2 |
24 1/2" x 24" |
side |
1 |
switch wall plate |
|||
|
2 |
17 7/8" x 24" |
top & back |
9 |
ceramic light bulb fixture |
|||
|
1 |
16 78" x 24" |
bottom |
9 |
75 - 90 watt light bulbs |
|||
|
1 |
16 7/8" x 13 3/8" |
front top |
5 |
18 1/2" x 21" stainless steall food grade screen |
|||
|
2 |
16 7/8" x10" |
front bottom & fan mount |
2 |
hinges |
|||
|
1 |
16 3/4" x 4 1/2" |
fan shield |
1 |
24" chain |
|||
|
1 |
16 3/4" x 13 1/2" |
heat shield |
20' |
heat resistant oven element wire |
|||
|
? |
brads, screws, fasteners |
||||||
|
Qty |
Description |
||||||
|
? |
3/4" x 1/2" wood strips cut into |
||||||
|
â |
|||||||
|
Qty |
Dimenisons |
||||||
|
12 |
19" 3/4" x 1/2" |
rails |
|||||
|
4 |
?" 3/4" x 1/2" |
side frame pieces |
|||||
|
3 |
15 1/2" 3/4" x 1/2" |
back and front bottom frame pieces |
|||||
|
2 |
?" 3/4 x 1/2 |
angled pieces for tray alignment |
|||||
|
10 |
15 1/2" 3/4" x 1/2" |
short screen frame |
|||||
|
10 |
19" 3/4" x 1/2" |
long screen frame |
|||||
|
? |
?" 3/4" x 1/2" |
various other pieces for frame and such |
|||||

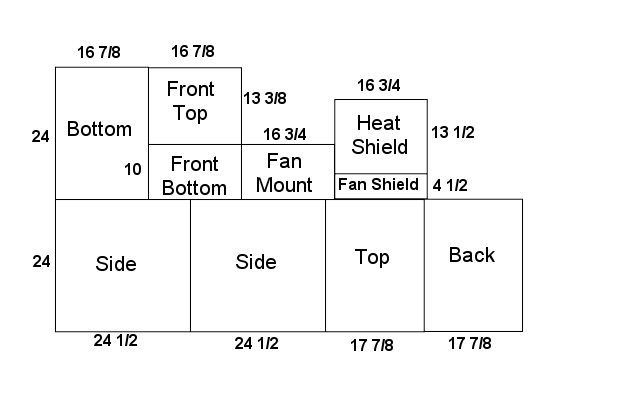

3/8" 4' x 8' plywood sheet can be cut as follows:

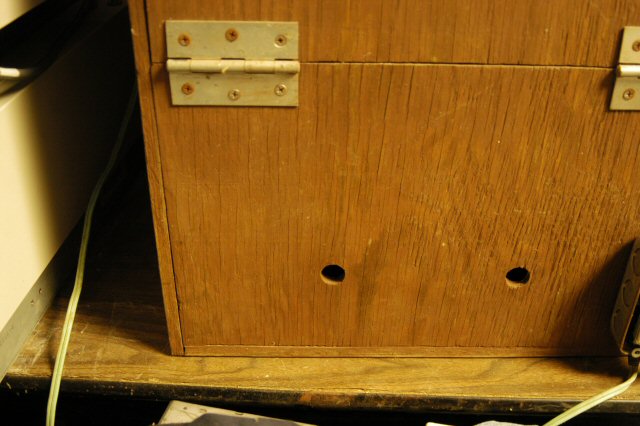

Fan Breather Holes

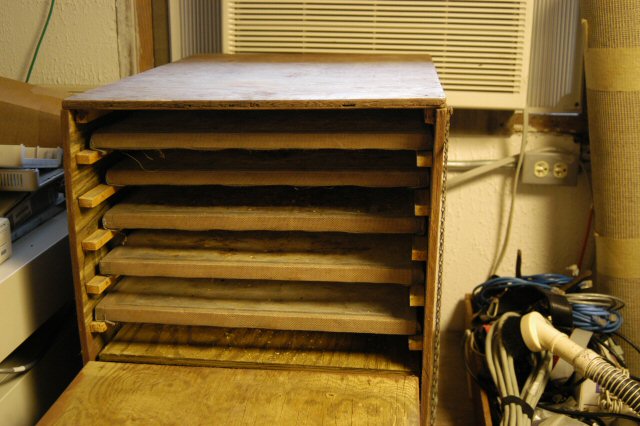

Trays In Place

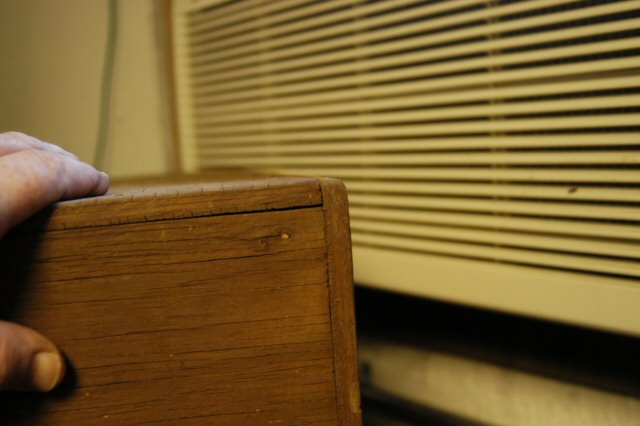

Top, Side, Back Joint

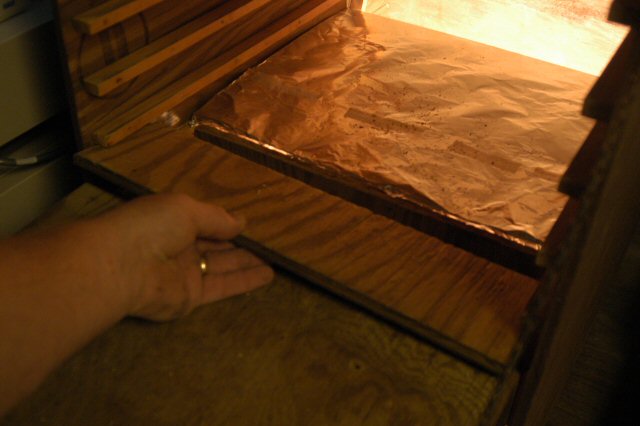

Fan Shield

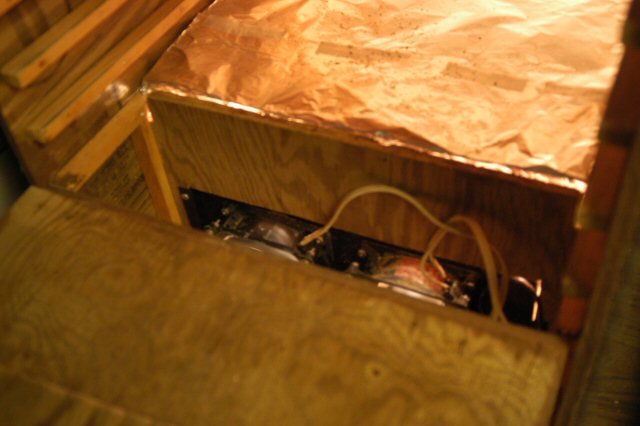

Fan Compartment

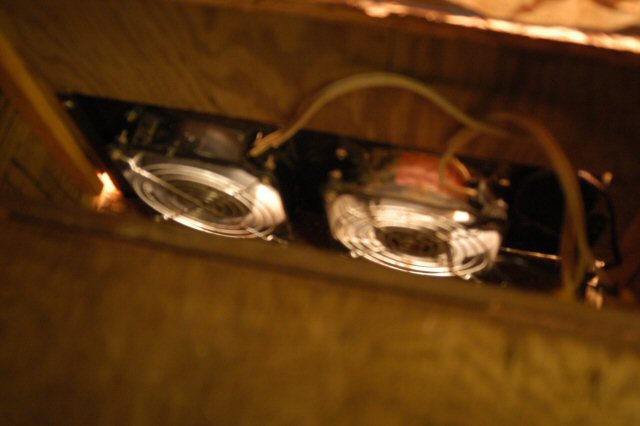

Fans

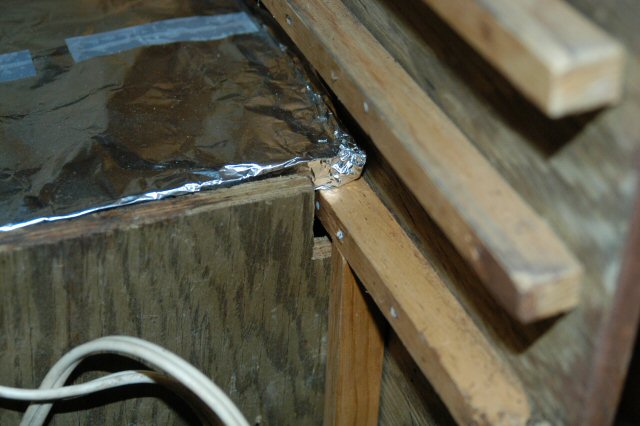

Notch in Fan Mount For First Rail

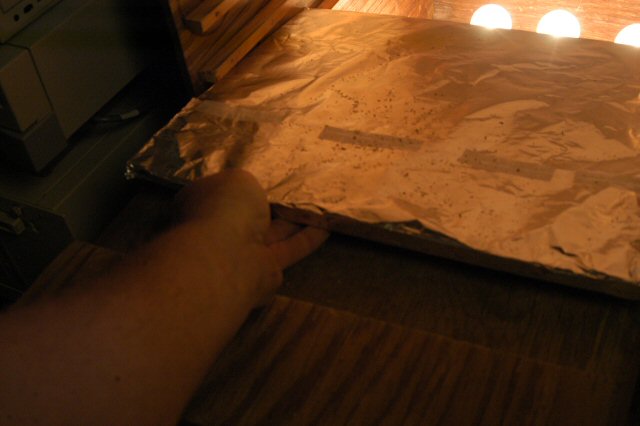

Heat Shield covered in Heavy Duty Aluminum Foil

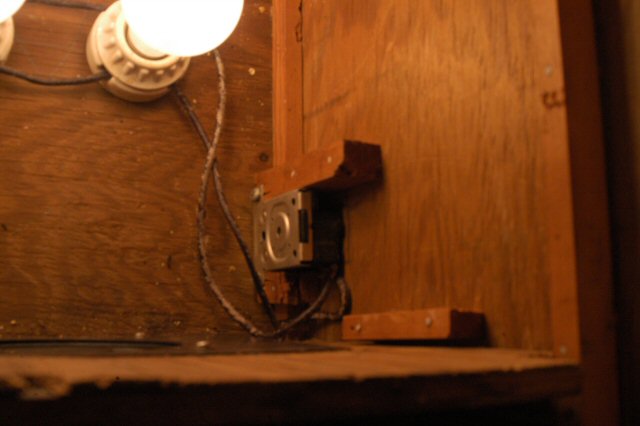

Water Heater Thermostat

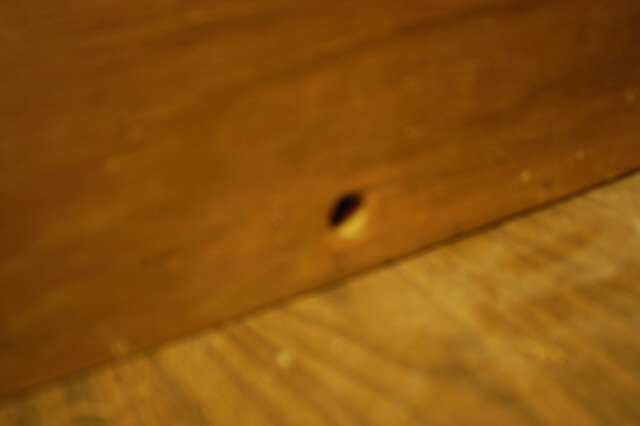

Water Heater Thermostat Adjustment Access Hole

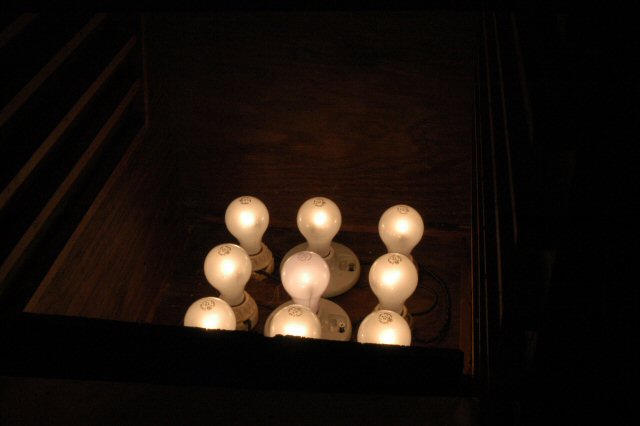

Bulb Array

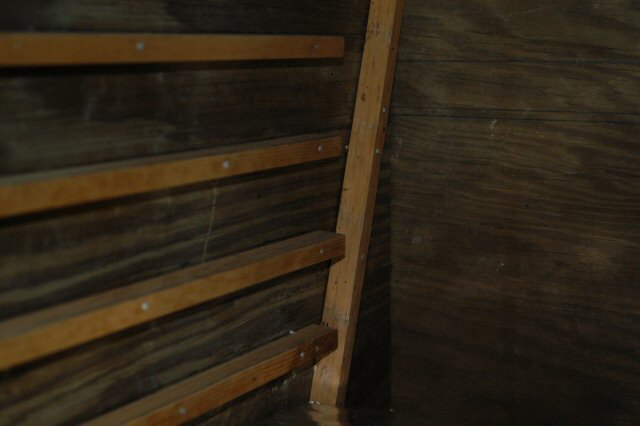

Tray Alignment Piece angles from First Rail to Top Corner At the Back Of The Box

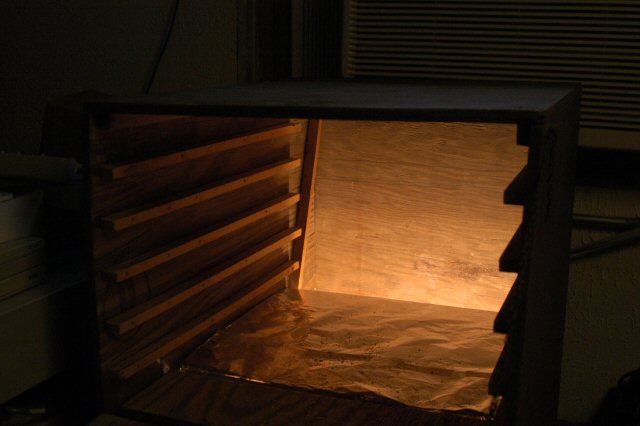

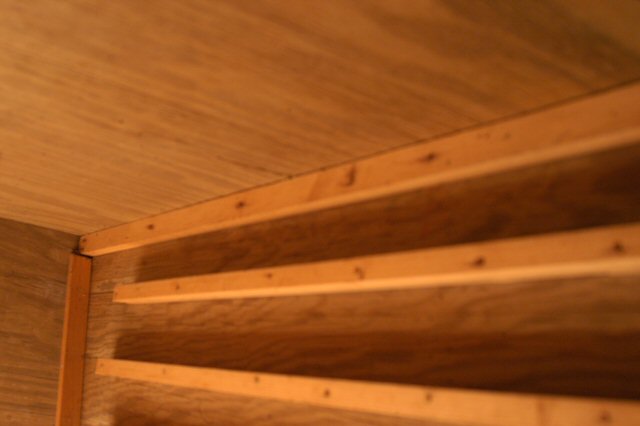

Frame Rail
Rails
Rails start at: 10" and then ?" apart.

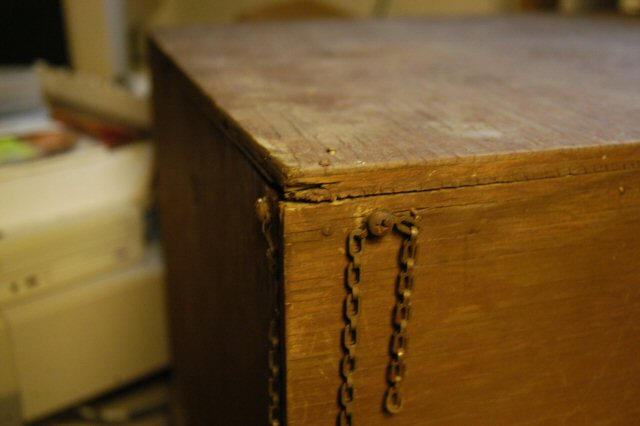

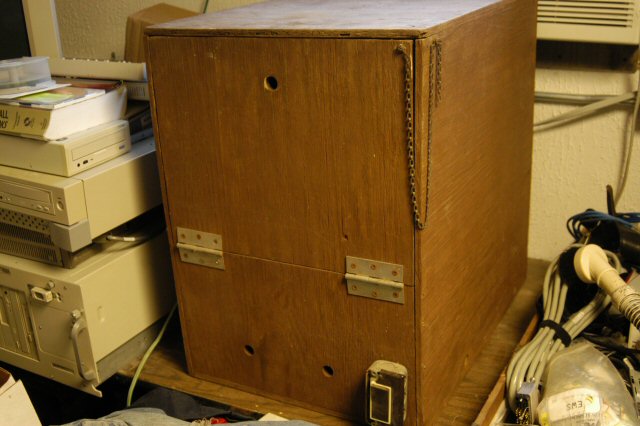

Door Chain
